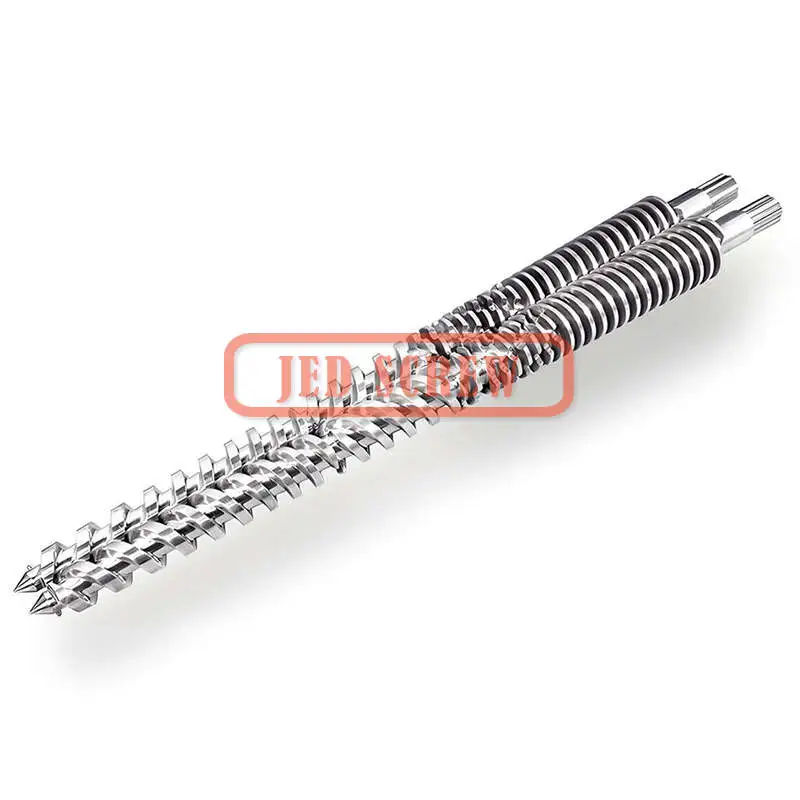

80/156 Conical Twin Screw Barrel
PRODUCT PARAMETERS
Description
Conical twin screw and barrel technical specifications:
| φ35/75 | φ40/84 | φ45/90 | φ45/97 | φ45/100 | φ50/105 | φ51/105 |
| φ55/110 | φ55/120 | φ58/125 | φ61/125 | φ65/120 | φ65/132 | φ68/147 |
| φ70/140 | φ80/143 | φ80/156 | φ80/174 | φ92/188 | φ95/191 | φ105/216 |

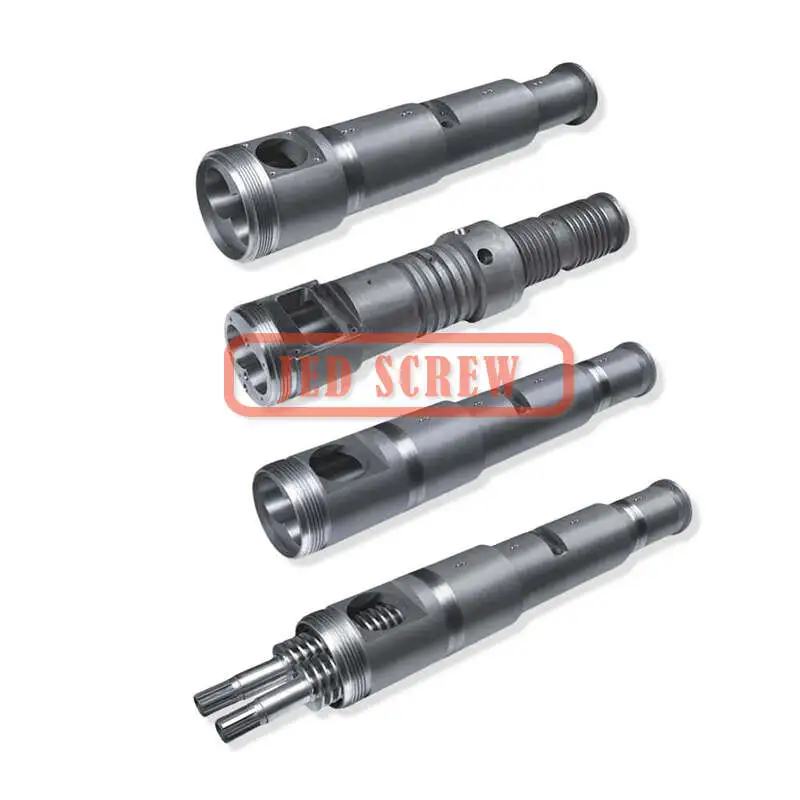

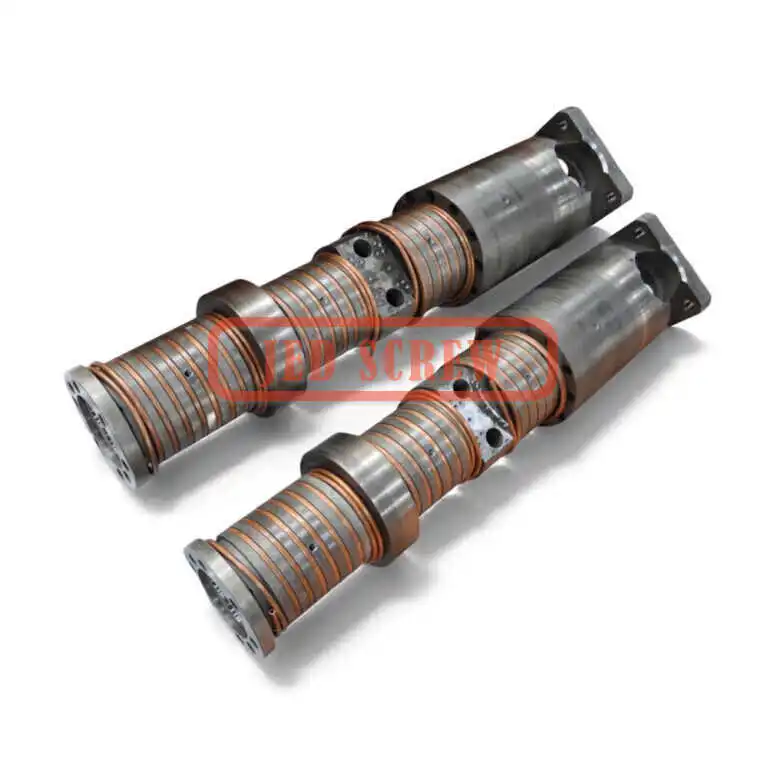

| Design Details | Screw I TYPE:inside is water/oil cooling system II TYPE:outside is oil cooling system Barrel I TYPE:outside is air cooling system II TYPE:out side is copper pipe around cooling system |

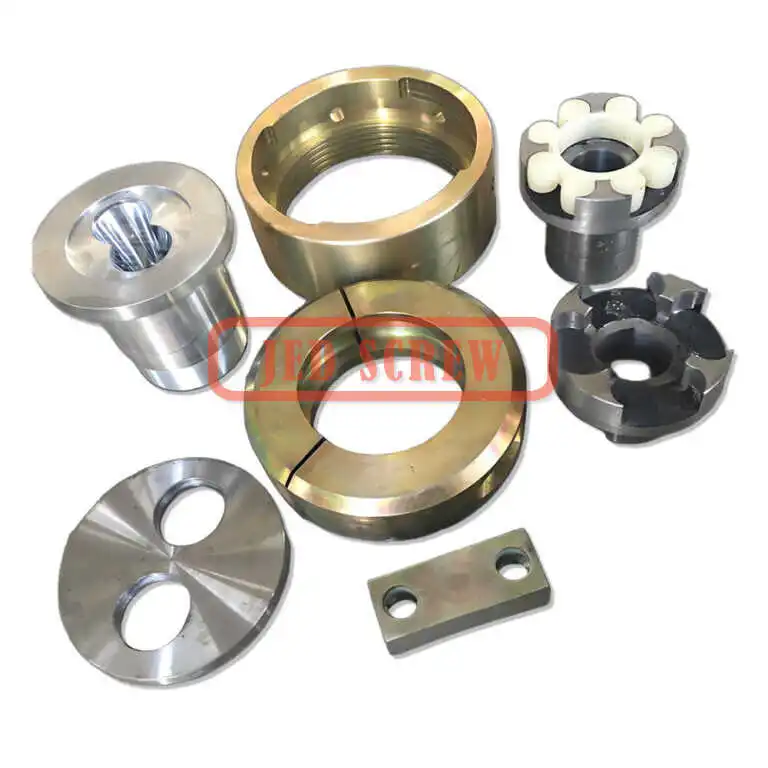

| Accessories | Stop ring+washers to adjust the space between screw and barrel |
| Technical Specification | Material:High quality 38CrMoAlA Process:Advanced nitriding & bimetallic process Hardness After Hardening & Tempering:HB280-320 Nitrided Hardness:HV900-1000 Nitrided Case Depth:0.45-0.8mm Nitrided Brittleness:Less than Grade 2 Surface Roughness:Ra 0.4 Screw Straightness:0.015mm Alloy Hardness:HRC 50-65 Alloy Depth:0.8-2.0mm |
| MOQ | 1 set (1 pair of screws and 1 pc barrel) |
| Type | Conical Twin Screw and Barrel |
