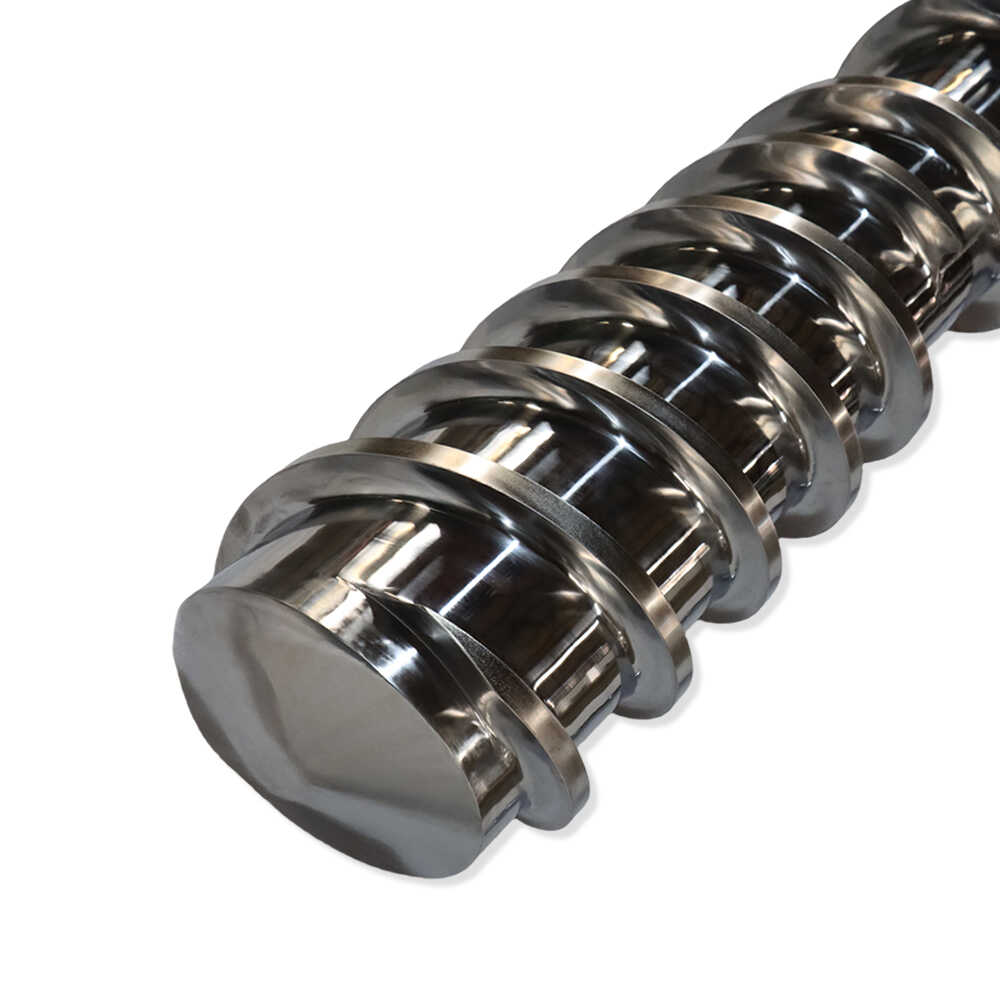

Plastic filtration extruder screw barrel

PRODUCT PARAMETERS

Application:Plastic filtration extruder
Place of Origin:Zhejiang,China
Brand Name:JED
Specifications: Φ 60mm~ Φ400mm
Material:38CrMoAlA
Process:nitriding & bimetallic
Nitrided Hardness:HV900-HV1000
Nitrided Case Depth:0.45-0.8mm
Nitrided Brittleness:Less than Grade 2
Surface Roughness:Ra 0.4
Screw Straightness:R0.015mm
Length diameter ratio：1: (5-10)
bimetallic ：alloy layer 2-2.5

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

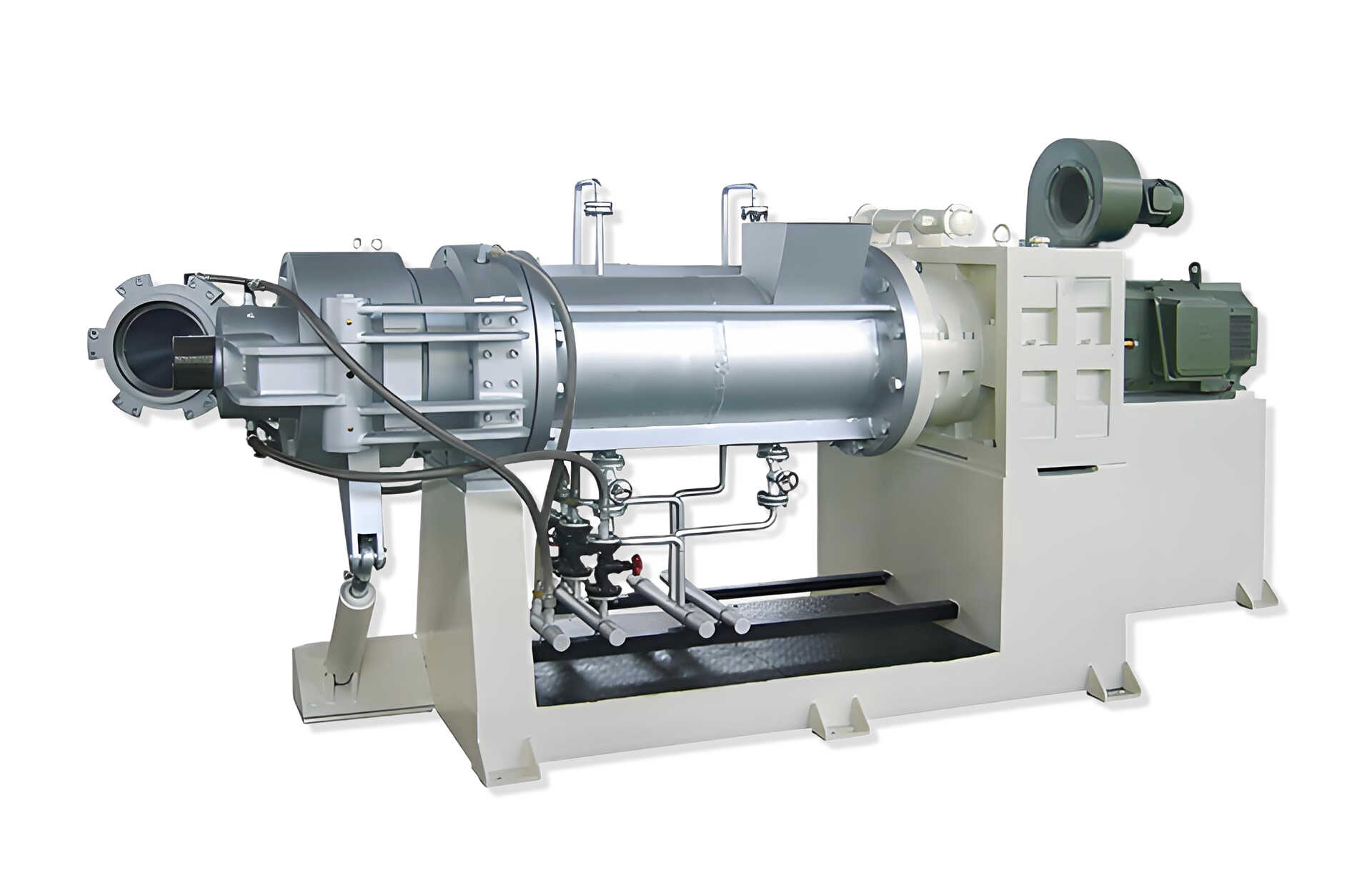

The plastic raw materials that are filtered and plasticized enter the rolling mill, where they are filtered such as iron filings and stones to ensure the safety of the rolling mill rollers. Through screw extrusion, the plastic can be uniformly plasticized. Dual head replacement is quick and easy to operate. The automatic opening device of the mold head during power outage ensures the safety of the machine.

Main technical parameters:

model	SJL-150	SJL-200	SJL-220	SJL-250	SJL-300	SJL-350
Screw diameter(mm)	Ø150	Ø200	Ø220	Ø250	Ø300	Ø350
Motor Power(kw)	55DC	75DC	90DC	110DC	132DC	160DC
Material of barrel and screw	38CrMoAIA

FAQs

What types of products can we offer?

Product Category:

Sheet extruder screw cylinder	Blow film extruder screw barrel	Blow molding extruder screw barrel	Recycling granulation extruder screw cylinder
Wire and cable extruder screw	Plastic steel strip extruder screw barrel	Wire drawing extruder screw barrel	Film coated extruder screw barrel
Cast film extruder screw tube	Plate extruder screw barrel	Spinning extruder screw barrel	Conical twin-screw tube
Parallel twin-screw barrel	Injection molding machine screw cylinder	Food extruder screw tube	Chemical extruder screw barrel
Non standard screw cylinder	Customized extruder

If some screw products do not have a list, please feel free to contact us by email and we will reply within 24 hours!

What logistics do we ship through?

Can it be customized as per our requirements?

We have many experienced engineers who can quickly customize various types and types of screw barrel according to customer requirements. Before produce, technical will check every detail with salesman according with clients’ request. Under produce, every step will be inspected before next process. And every salesman will follow some time to make sure 100% correct and reduce communication error and work undelay. We put quality at a high level and the price is middle level.
