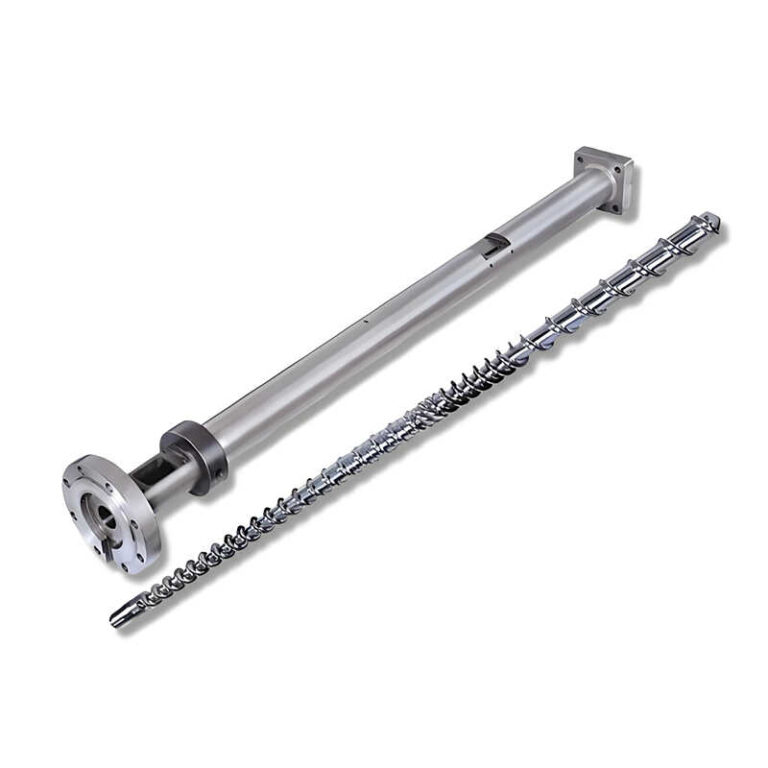

PP/PE/PPR high-efficiency pipe extruder screw barrel – Screws And Barrels Suppliers,Barrel Nuts And Screws Manufacturers

PRODUCT PARAMETERS

Application:Made for PP / PE / PPR pipe extruder
Place of Origin:Zhejiang,China
Brand Name:JED
Material:38CrMoAlA
Process:nitriding & bimetallic
Nitrided Hardness:HV900-HV1000
Nitrided Case Depth:0.45-0.8mm
Nitrided Brittleness:Less than Grade 2
Surface Roughness:Ra 0.4
Screw Straightness:R0.015mm
Length diameter ratio：1: (30-42)
bimetallic ：alloy layer 2-2.5

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

specifications	electrical machinery	speed（r/min）	production	Reduction gearbox
Ø45/33	45KW	0-215	110KG	173-7
Ø60/33	90KW	0-188	260KG	225-8
Ø65/33	90KW	0-188	300KG	225-8
Ø75/33	132KW	0-150	400KG	280-10
Ø90/33	185KW	0-120	520KG	315-12.5
Ø120/33	315KW	0-108	950KG	395-14
Ø150/33	400KW	0-90	1200KG	450-16.4

JED主要技术参数 Main Technical Parameters (1:38)
管材规格(mm) Diameter(mm)	挤出机 Extruder	实际最大挤出量(kg/h) Capacity(kg/h)
Ф20-Ф75	Ф60/38	320
Ф50-Ф250	Ф75/38	550
Ф160-Ф450	Ф90/38	850
Ф315-Ф630	Ф120/38	1200
Ф450-Ф800	Ф120/38	1200
Ф500-Ф1000	Ф150/38	1400
Ф710-Ф1200	Ф150/38	1400
Ф900-Ф1600	Ф150/38 Ф75/38	1900
Ф1200-Ф2000	Ф150/38 Ф90/38	2200
Ф1600-Ф2500	Ф150/38 Ф120/38	2500
Ф2000-Ф3000	Ф150/38 Ф120/38	2500

FAQs

What types of products can we offer?

Product Category:

Sheet extruder screw cylinder	Blow film extruder screw barrel	Blow molding extruder screw barrel	Recycling granulation extruder screw cylinder
Wire and cable extruder screw	Plastic steel strip extruder screw barrel	Wire drawing extruder screw barrel	Film coated extruder screw barrel
Cast film extruder screw tube	Plate extruder screw barrel	Spinning extruder screw barrel	Conical twin-screw tube
Parallel twin-screw barrel	Injection molding machine screw cylinder	Food extruder screw tube	Chemical extruder screw barrel
Non standard screw cylinder	Customized extruder

If some screw products do not have a list, please feel free to contact us by email and we will reply within 24 hours!

What logistics do we ship through?

Can it be customized as per our requirements?

We have many experienced engineers who can quickly customize various types and types of screw barrel according to customer requirements. Before produce, technical will check every detail with salesman according with clients’ request. Under produce, every step will be inspected before next process. And every salesman will follow some time to make sure 100% correct and reduce communication error and work undelay. We put quality at a high level and the price is middle level.

What is our ordering process?

What services are included in the after-sales service?
