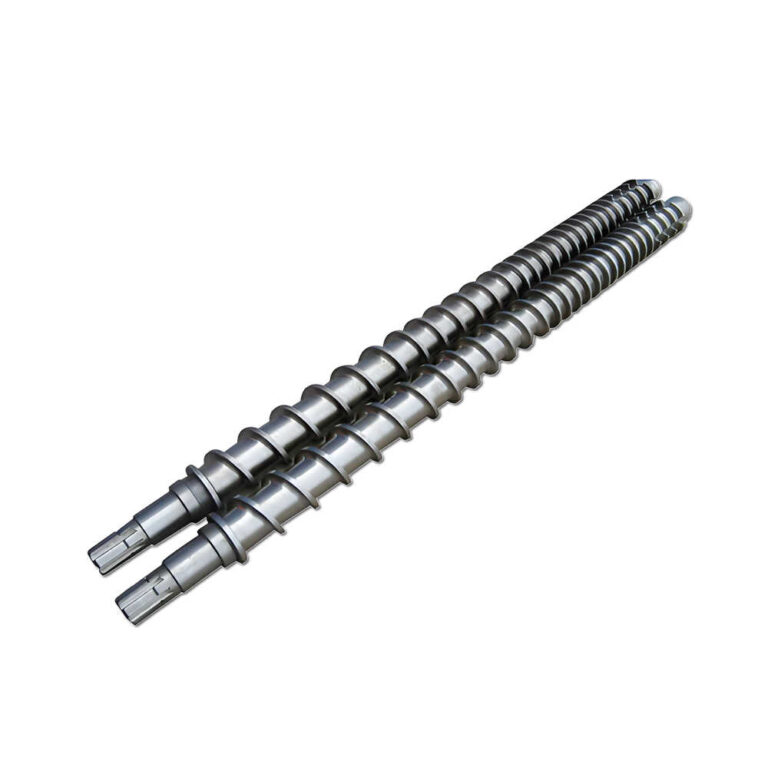

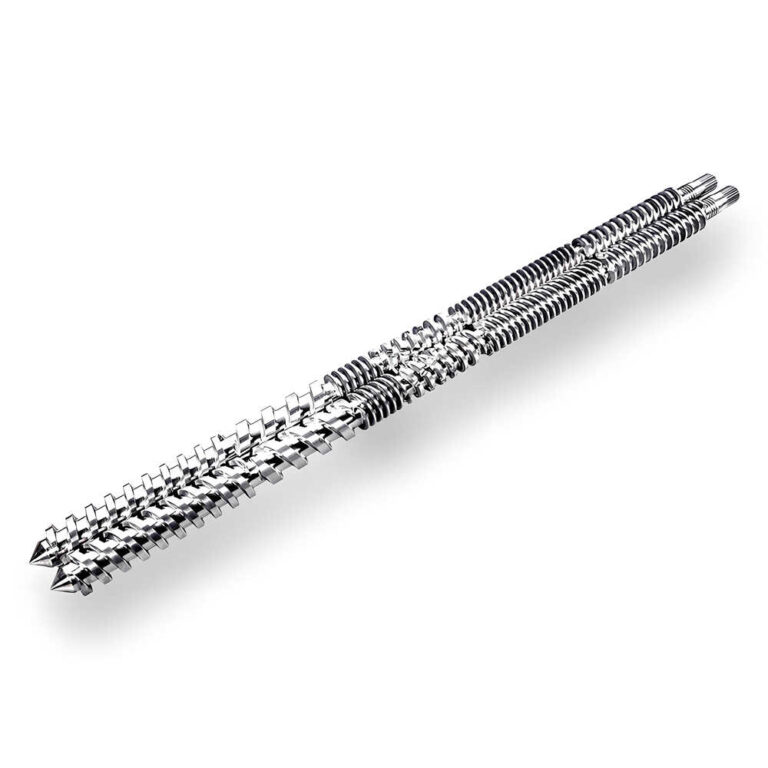

Parallel Twin Screw & Barrel

PRODUCTS DETAILS

( Specification ): Φ60/2, Φ65/2, Φ70/2, Φ72/2, Φ75/2, Φ80/2, Φ85/2, Φ90/2, Φ93/2, Φ100/2, Φ105/2, Φ110/2, Φ115/2, Φ120/2, Φ125/2, Φ130/2, Φ140/2, Φ150/2, Φ160/2, Φ170/2, Φ180/2, Φ190/2, Φ200/2, Φ250/2

For good plasticizing effect, we have different design of screw barrel to meet customer’s demand.

Gradual type, mutant type, wave type, barrier type, double screen type, shunt type, separation type, exhaust type, pin type, mixed type, double-head type, three-head type, multi head type etc.

Scope of application: WPC PVC. WPC PE, Super high molecular sheet, 1/2 high Calcium buckle, 50-400 high Calcium pipe, 50-300 high Calcium Profile, soft PVC sheet, XPS-PVC etc.

PP、PE、ABS、PVC, raw material, pelletzing, pipe, profile, sheet etc.

Material of screw

Raw material	The finished product processing requirments
38CrMoAIA, SACM645, 42CrMo	Nitriding treatment
42CrMo, AISI 4140	Hard chrome coated layer
4Cr5MoSiV1, SKD-61, SKD-11	Spraying bimetal alloy layer and nitriding treatment
HPM38, SI36, SUS440, 9Cr18MoV	High frequency quenching
GHII3	Nature hard after high temperature

Screw & Barrel use material

Raw material	The finished product processing requirments
38CrMoAIA, SACM645	Nitriding treatment
Cr12MoV, Cr12	Alloy steel
38CrMoAIA, SACM645, 40Cr, AISI4140, 42CrMo	Bimetallic of the inner hole centrifugal casting
GHII3	Nature hard after high temperature

Technical parameter

Model	Motor power (kw)	Screw dia. (mm)	L/D	Screw rotation speed (rpm)	PVC Production (kg/h)
QY75	45	75	26-36	45	220-350
QY90	55	90	26-36	45	280-460
QY110	75	110	26-36	45	350-650
QY120	110	120	26-36	45	500-80
QY130	132	130	26-36	45	680-1000

The production of high profile PVC, PVC pipe with large bore, and WPC extrusion requirments of research and development, with the small shear rate, soft compressed, and the material is resist to compose, the good plasticzing, high output, wide application range, high reliability.

Confirm the material being processed, HRC, value, quantity, according to drawings and samples requires grinding forming angle and tolerance. Mass production is now only, can completely replace the international first-class products, is highly cost-effective.

With the advanced integrated production system, and all kinds of precision technology production and processing capacity, it can realize high efficiency, and low cost application.

From the six axis, seven axis CNC machining high-grade products to the three shaft, four axis production middle grade products, different levels of quality and price. Professional alternative to first-class industrial products, special, non-standard, special-shaped, new products in large quantities, the high cost of research and development, production and processing, according to drawings and samples to improve the design, can greatly reduce the comprehensive cost.

Please provide samples or requirements about dimensions and tolerances of, semi-finished and finished products, the equipment, equipment value RMB ( to judge its rigidity and jumping), the monthly consumption quantity, the current screw are using HRC and so on.
