Food double screw barrel (compatible with VEMAG) – Screws And Barrels Suppliers,Barrel Nuts And Screws Manufacturers

PRODUCT PARAMETERS

Application:Fruit, live leg sausage and other extruders
Place of Origin:Zhejiang,China
Brand Name:JED

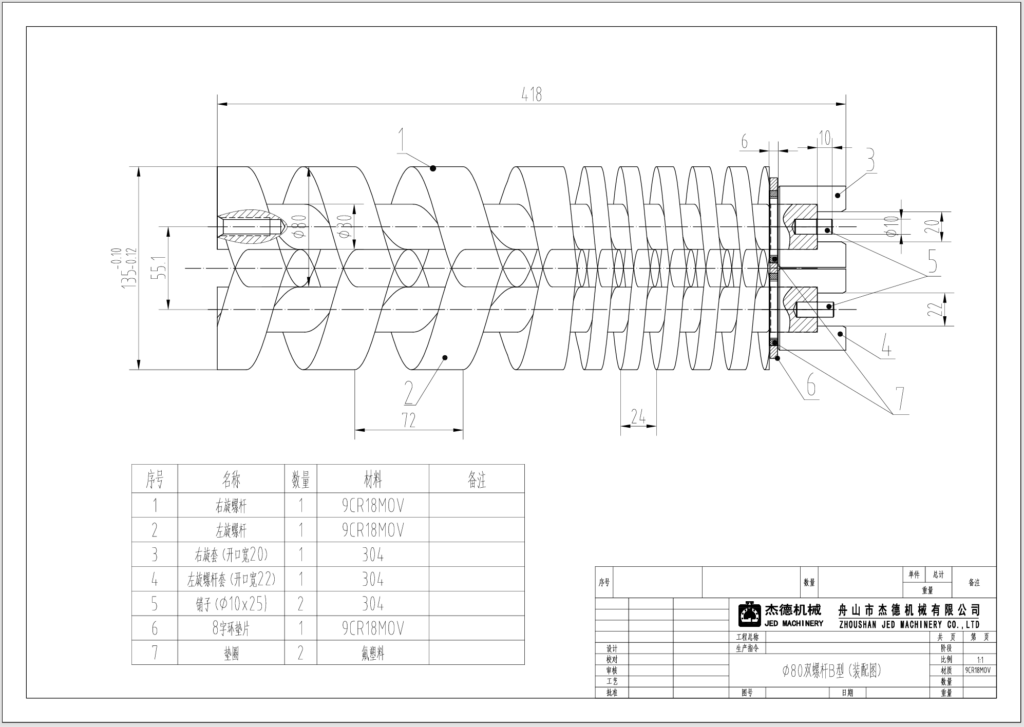

Specifications: Φ 80mm-2
Material:9cr18mov,3cr13
Process:quenching
quenching hardness:HRC55-HRC60
Nitrided Brittleness:Less than Grade 2
Surface Roughness:Ra 0.4
Screw Straightness:R0.015mm

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

Material requirements:
The screw and barrel should be made of food grade stainless steel (9CR18MO or 3CR13)
Processing requirements:

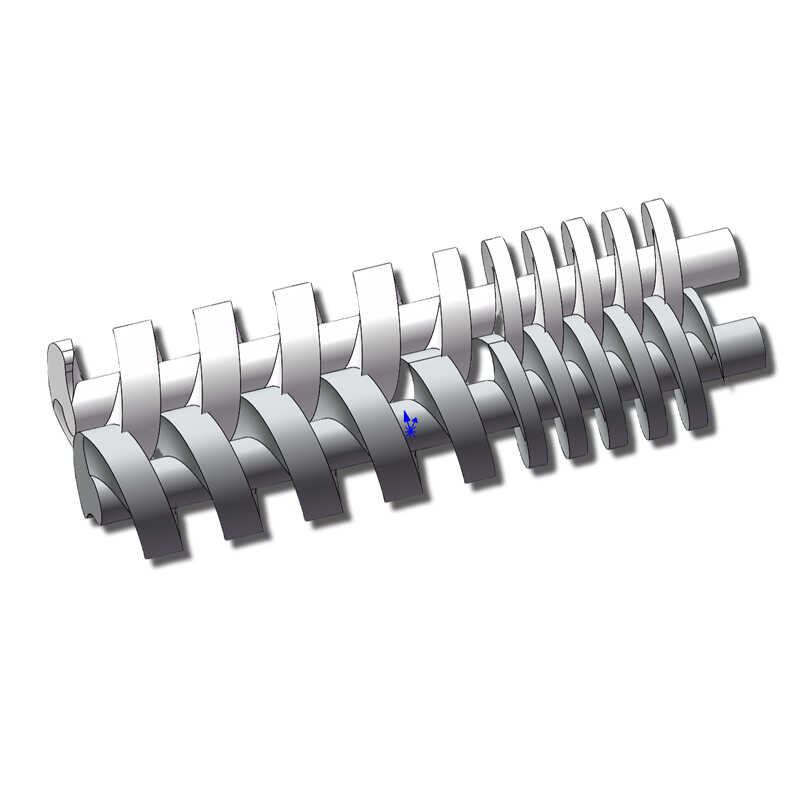

Two screws are designed to rotate in opposite directions to maintain synchronization without biting, such as controlling the uniformity of minced mea

FAQs

What types of products can we offer?

Product Category:

Sheet extruder screw cylinder	Blow film extruder screw barrel	Blow molding extruder screw barrel	Recycling granulation extruder screw cylinder
Wire and cable extruder screw	Plastic steel strip extruder screw barrel	Wire drawing extruder screw barrel	Film coated extruder screw barrel
Cast film extruder screw tube	Plate extruder screw barrel	Spinning extruder screw barrel	Conical twin-screw tube
Parallel twin-screw barrel	Injection molding machine screw cylinder	Food extruder screw tube	Chemical extruder screw barrel
Non standard screw cylinder	Customized extruder

If some screw products do not have a list, please feel free to contact us by email and we will reply within 24 hours!

What logistics do we ship through?

Can it be customized as per our requirements?

We have many experienced engineers who can quickly customize various types and types of screw barrel according to customer requirements. Before produce, technical will check every detail with salesman according with clients’ request. Under produce, every step will be inspected before next process. And every salesman will follow some time to make sure 100% correct and reduce communication error and work undelay. We put quality at a high level and the price is middle level.

What is our ordering process?

What services are included in the after-sales service?
