plastic recycling extruder screw barrel，Particle extruder screw barrel

We focus on production design, extrusion screw barrel for more than 10 years. Our offerings include innovative solutions such as the recycled plastic screw. The recycled plastic screw is vital in plastic recycling extruder screw barrel, plastic recycling screw barrel manufacturer, suitable for PC, PVC, PET, PE, PA, EVA and other raw materials granulation.

Screw barrel introduction

The special structural design improves the plasticizing effect of plastics, increases production capacity and makes the product more valuable. At the same time, equipped with single exhaust and double exhaust structures, it can fully discharge dry materials, wet materials and washing materials. The recycled plastic screw aids in this process.

There are several main categories of plastic recycling granulation

First category:
New material granulation, that is, new plastic powder is extruded into granules through a screw.

Second category:
Mixed modified material granulation, that is, several plastics are mixed together and then extruded into new granules through a screw, which usually uses a recycled plastic screw.

Third category:
Cleaning recycled material granulation, that is, already made plastic products, such as films, pipes, plates, etc., but these products have been damaged and cannot be used during the production process, or there are defective products, so these products need to be crushed, cleaned and sorted to form granules, which can be done with a recycled plastic screw.

Production Flow

Screw Process:

Blanking ->Punching ->Rough turning ->Hardening & Tempering ->Finish turning ->Rough Milling ->Finish Milling ->Make grooves for bimetallic ->Bimetallic by PTA ->Rough Grinding ->Rough polishing ->Make splines or Keys ->Nitriding ->Finish Grinding ->Polishing ->Packing & Delivery

Barrel Process:

Blanking ->Punching ->Rough turning ->Rough Boring ->Hardening&Tempering ->Finish Boring(0.4-0.8mm) ->Make grooves for bimetallic ->Bimetallic by PTA ->Finish Grinding ->Finish turning ->Milling the feeding hole & exhausting holes ->Nitriding ->Make other small holes,thermometer hole,location hole->Grinding surface of feeding hole & exhausting hole ->Polishing ->Packing & Delivery

Product advantages

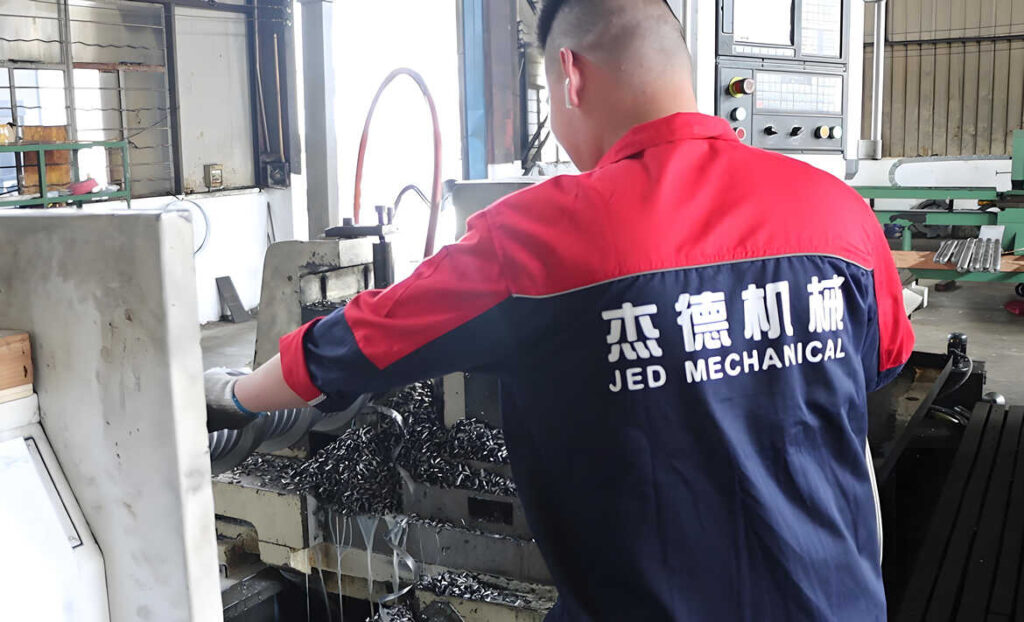

Advanced and complete production equipment

The company has various high-precision product-specific equipment to ensure that product quality continues to improve steadily and continuously, and sincerely provide customers with excellent products and high-quality services.

Large-scale production site

The company mainly produces various high-precision screws, melt barrels and other plastic machine parts. At the same time, it is also committed to developing screws with higher requirements to meet the needs of the majority of users. Produce first-class products with professionalism.

First-class heat treatment processing

The company has internationally advanced screw and barrel surface treatment methods and equipment, such as: imported supersonic surface spraying, electroplating, surface high-frequency or medium-frequency quenching, vacuum quenching, nitriding, etc., to meet the needs of different uses.

Strong R&D capabilities and quality assurance

A professional R&D team is the key to winning the market. People-oriented, constantly seeking new science and technology. Develop more high-quality and fashionable products, introduce international production equipment and scientific and modern management systems, and closely follow the pulse of the times. Whether in technology or design, it maintains a good advantage.

After-sales service

While achieving achievements and honors in production, R&D, and innovation, the company has always adhered to the people-oriented approach and continued to invest large amounts of money in the purchase and upgrade of production safety facilities and equipment and employee training. It attaches importance to production without forgetting safety and always rings the alarm bell of “no matter how busy production is, never forget safety.”
